PLS Pearl Leveling System 1/16" Clips

PLS Pearl Leveling System is an all-in-one lippage control plus spacer system. It makes setting tiles easy and profitable.

Available in 250, 500, and 2000 quantities
For use when installing wall and floor tiles
For use on porcelain, ceramic, and natural stone tiles
It is especially recommended to improve finishes when working with large-format tiles
A system of interlocking clips and re-usable wedges ensure your floor will be perfectly level from one tile to the next
Creates a grout joint size of 1/16"
It requires minimal effort to install and remove, plus it speeds up installation time
It can be installed by hand or with an optional install tool
Prevents the tile from moving during the installation and curing process
Multi-polymer plastic provides greater tensile strength while remaining flexible to avoid breakage failures while tightening

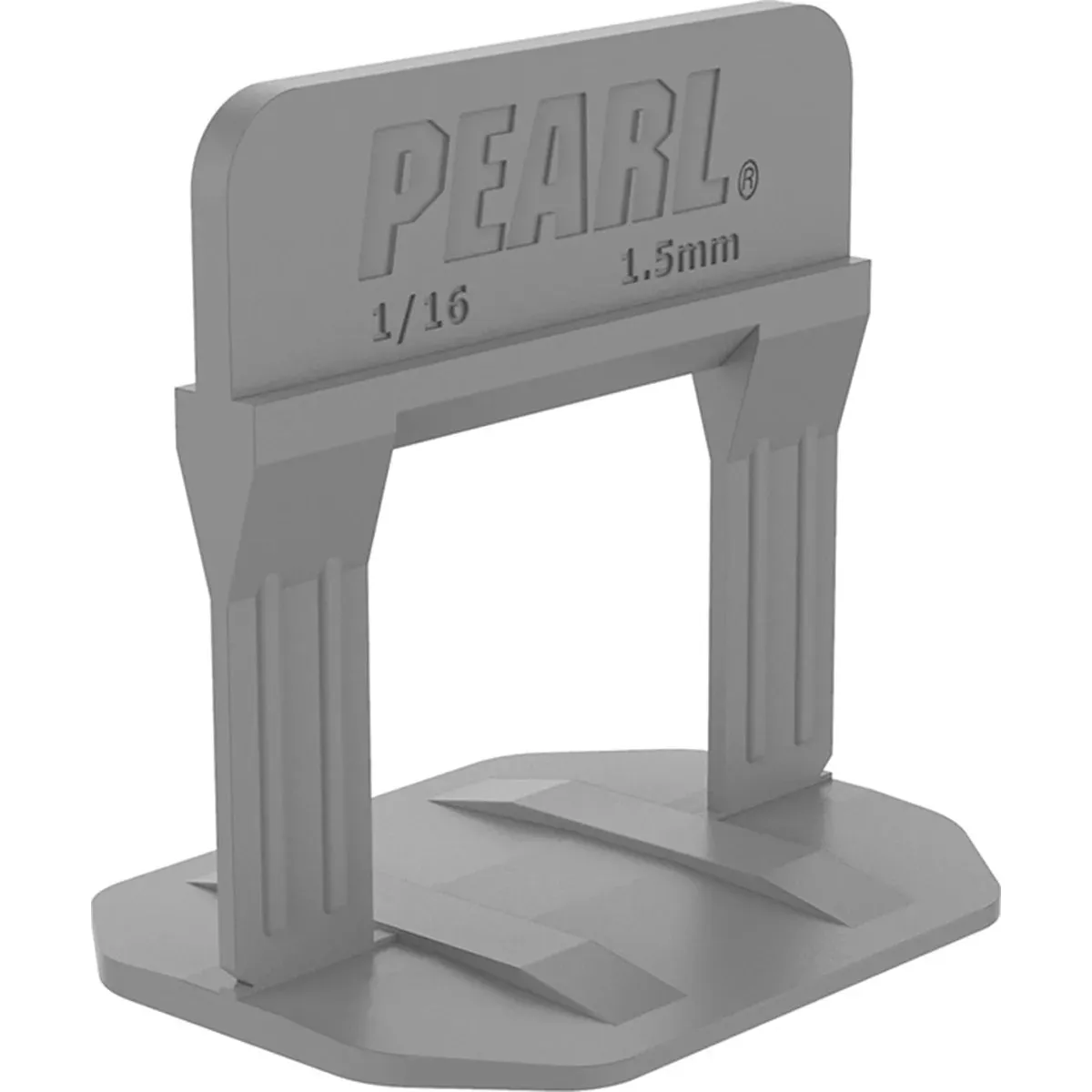

Each clip thickness is easily identified thanks to the range of different colors available (1/16" is a gray clip)
Breaks evenly and clean at the base every time
Simple impact removal system (by kicking or mallet) - Always in the direction of the grout joint
Use on 1/8" to 1/2" thick tile
Wedges sold separately

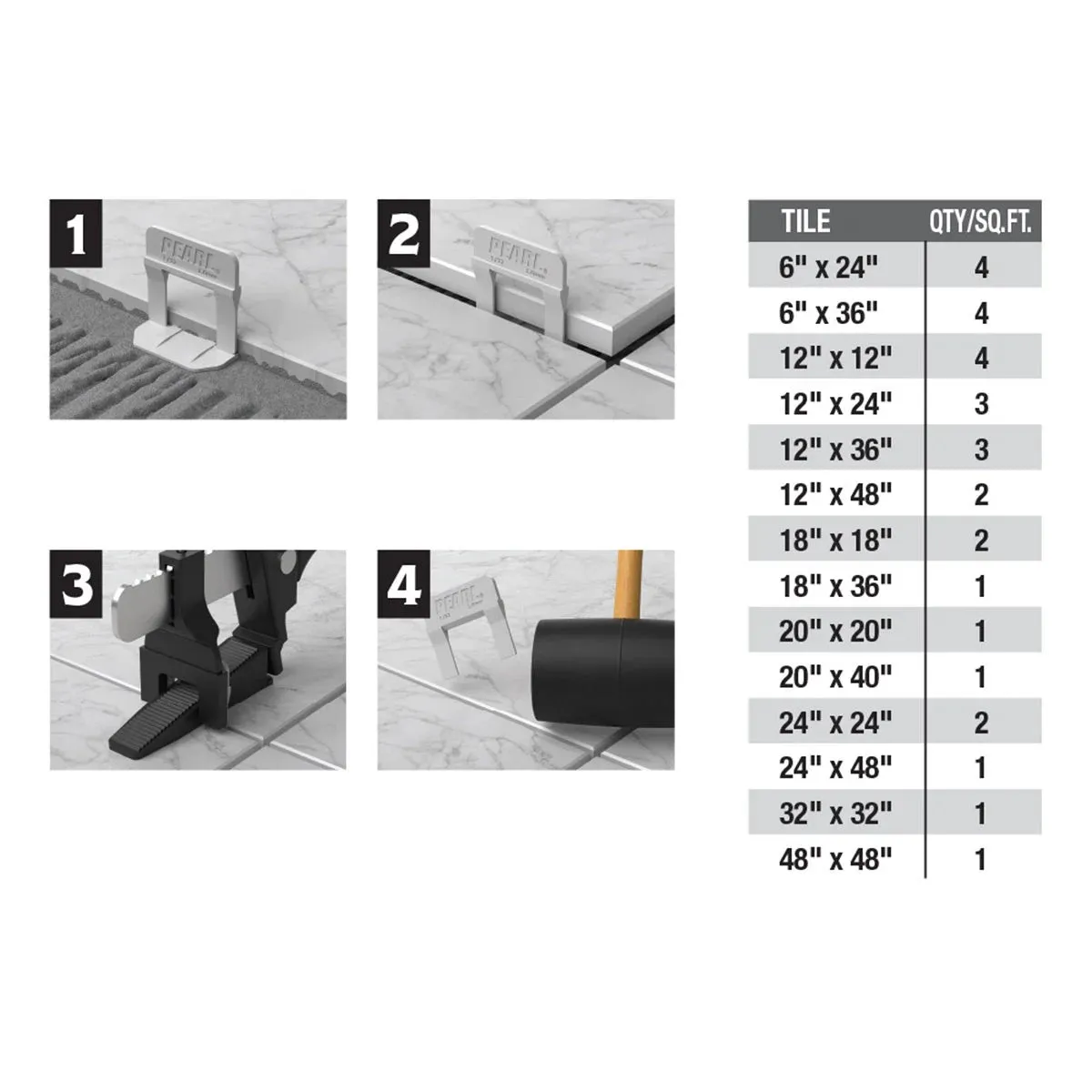

STEP 1: Insert the clip under the first installed tile to achieve consistent grout joint spacing
STEP 2: Place the next tile on top of and against the clips of the previously installed tile

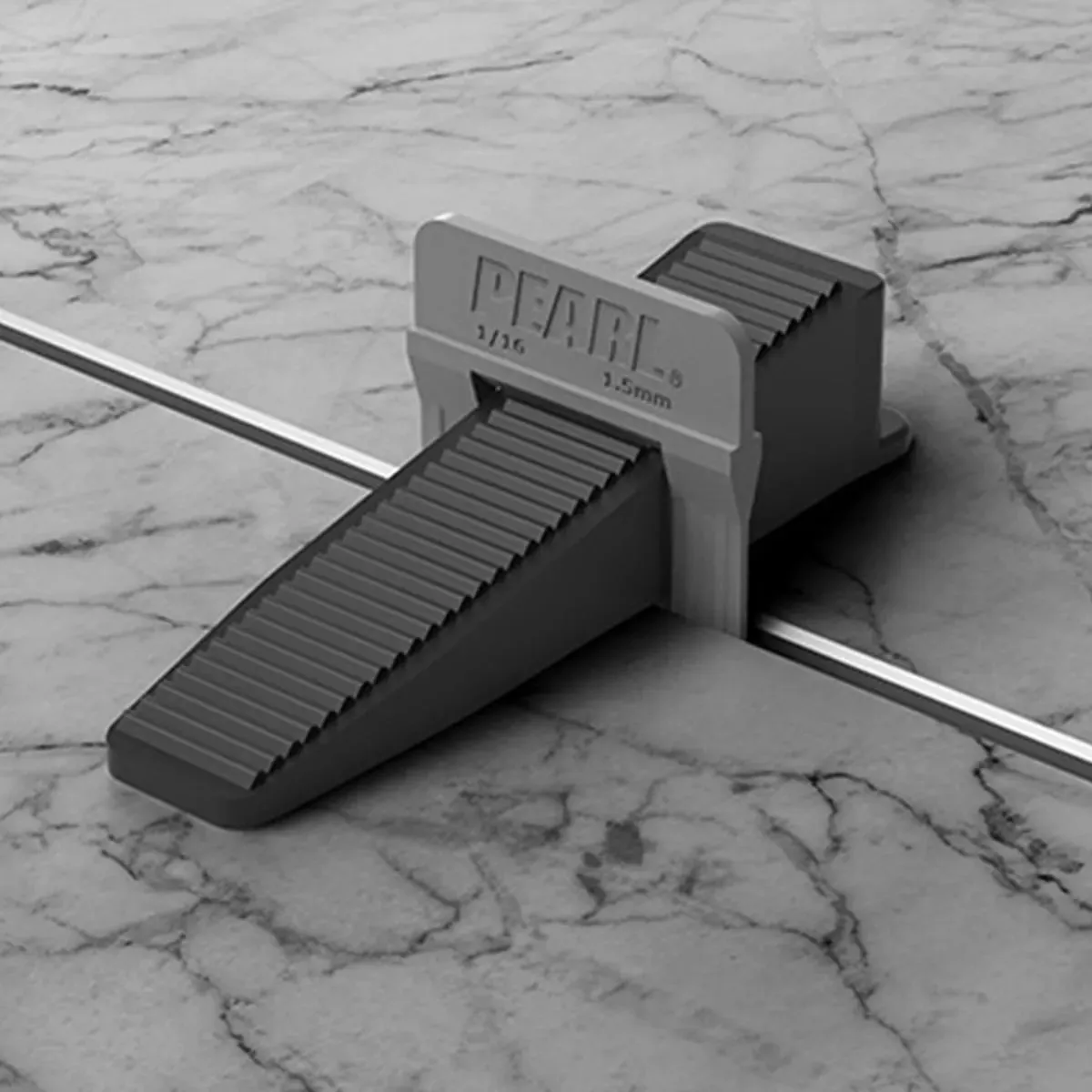

STEP 3: Insert the wedge into the clip to secure, align, and flatten the adjoining tile (your hand or the installation tool can be used to tighten the wedge into the clip)
STEP 4: After the thin set has cured, hit the clips (with or without a wedge) with a rubber mallet in the direction of the grout joint
STEP 5: Separate the broken clips from the wedges (wedges are re-usable and will last multiple jobs with proper installation and removal)
